Vibration Transducer

Vibration TransducerФото 2
Description
Technical spec
Continuous monitoring of numerous process parameters and monitoring of equipment condition are required by modern technologies. The most important parameters are mechanical motion parameters, namely parameters of periodic oscillations of a monitored object (vibrations). These parameters include vibration displacement (vibration amplitude) and vibration velocity (vibration frequency).

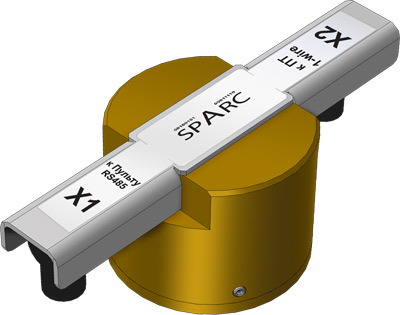

The Vibration Transducer (PV) is designed to monitor frequency response from critical components of equipment used in heavy working conditions (pumps, compressors, spindles, electric motors, etc.) and operated in potash mines and at coal and shale mine faces exposed to gas (methane) and dust explosion hazards.

Request price >
Vibration acceleration measurement range±58 m/s2
Vibration velocity measurement range0…500 mm/s
Vibration displacement measurement range150…14000 um
Oscillation frequency measurement range60…100 Hz
Accuracy< 2 %
Input voltage ripple-5 %
OutputRS485 Modbus RTU
DC supply voltage8…15 V
Explosion protection markingРО Ex ia I Ма
Dimensions125 х 55 х 44 mm
Mass0,2 кг
